CPS170 Two Colour Injection Moulding Machine Parallel Clean Energy Saving

Product Categories
ningbo konger machinery co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CPS170 Two Colour Injection Moulding Machine Parallel Clean Energy Saving

Place of Origin : CHINA

Brand Name : KONGER

Certification : ISO CE

MOQ : 1SET

Price : USD29000-100000

Packaging Details : PLASTIC FILM

Delivery Time : 30-50DAYS

Payment Terms : TT LC

Supply Ability : 30-50SETS 30DAYS

MATERIAL : PLASTIC

COLOR : WHITE BLUE

WARRANTY : 1 YEAR

HS CODE : 8477101090

Contact Now

CPS170 Parrallel Clean 2 Color Energy Saving Injection Molding Machine

DESCRIPTION UNIT CPS170
International Size Rating
INJECTION UNIT UNIT A B A B
Screw diameter mm 28 32 28 32
Screw L:D ratio l/d 22.5 22.5 22.5 22.5
Shot volume cm³ 108 141 108 141
Shot weight(PS) g 98 128 98 128
oz 3.5 4.5 3.5 4.5
Injection pressure bar 2699 2066 2699 2066
Injection rate cm³/s 79 83 79 83
Plasticizing capacity g/s 9 10 9 10
Injection stroke mm 175 175 175 175
Injection speed mm/s 120 120 120 120
Max.screw speed r/min 221 221 221 221
CLAMPING UNIT
Clamping force kn 1700
Opening stroke mm 445
Space between tie bars mm 700x440
Max.mold height mm 460
Min.mold height mm 160
Rotary Table Diameter mm 800
Ejector stroke mm 100
Ejector force kn 38x2
Number of ejector pcs 3x2
Distance Berrel Centers mm 420
POWER UNIT
Maximum oil pump pressure bar 160
Pump motor kW 14 14
Heating capacity kW 6.8 6.8 6.8 6.8
Number of temp zones 2x4
GENERAL
Oil tank capacity l 400
Machine dimension(L×W×H) m 5.0x1.76x2.1
Machine weight t 7.1
Hopper capacity kg 25 25

Cheap CPS170 Two Colour Injection Moulding Machine Parallel Clean Energy Saving for sale

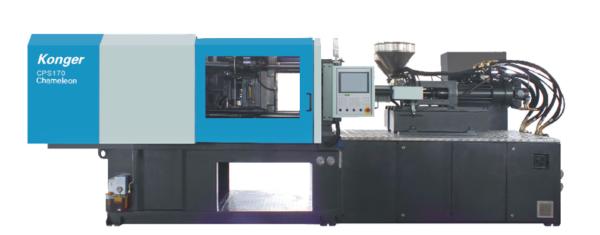

CPS170 Two Colour Injection Moulding Machine Parallel Clean Energy Saving Images
